A cold garage workshop in winter is frustrating, unproductive, and sometimes dangerous. Without proper insulation, your garage becomes a heat sink, draining warmth no matter how powerful your heating system is. Concrete floors stay frigid, metal doors frost over, and gaps around frames let drafts pour in constantly. To transform your garage into a year-round working space, you need to approach insulation strategically and combine multiple solutions.
1. Start with Wall Insulation Using Fiberglass Batts
Most garage walls consist of nothing but exposed studs covered with exterior sheathing and siding. This lack of thermal protection means cold air transfers directly into your workspace. Installing fiberglass batt insulation in each stud cavity is one of the most effective and DIY-friendly approaches. After inserting the batts between studs, finish the interior with drywall, plywood, or oriented strand board. Proper wall insulation creates a thermal barrier that retains heat and significantly reduces your heating bills. This foundational step makes every other heating effort work better.
2. Insulate Your Garage Door Completely
Metal garage doors are notoriously thin and cold in winter, often accumulating frost on their interior surfaces. An insulated garage door can raise your garage temperature by 10 to 12 degrees on its own, even before you run any heaters. Fortunately, garage door insulation kits are widely available and straightforward to install. Simply measure your door dimensions carefully, purchase a kit with the right coverage, and apply the insulation material according to the manufacturer’s instructions. For two-door garages or oversized doors, you may need multiple kits.
3. Seal Gaps Around Door Frames
Even well-maintained garage doors do not fit snugly in their frames. Small gaps run along all edges, allowing cold air to infiltrate continuously. Install self-adhesive weather stripping around the top and sides of the door frame to seal these leaks. At the bottom, replace the garage door threshold or rubber gasket if it has become brittle or cracked over time. These seals are inexpensive, easy to apply, and block a significant source of heat loss.
4. Weatherstrip Windows and Use Film Insulation
Windows leak cold air just as readily as doors do. Apply shrink-type window insulation film to the interior side of any garage windows. Tape the film to the window frame, then use a hair dryer to heat it until it shrinks tight against the frame, creating an airtight seal. This temporary or seasonal solution is affordable and effective for stopping drafts while maintaining visibility.
5. Install Radiant Floor Heating for Comfort
Concrete floors remain bitterly cold even when the air above warms up. If you are planning a garage renovation or new construction, radiant floor heating systems offer consistent warmth and eliminate cold spots. The system uses flexible piping installed beneath the concrete, circulating hot water from your boiler to radiate heat upward. Installation costs range from five to nine dollars per square foot plus equipment. This is not a DIY project and requires a specialized plumber, but it delivers the most comfortable working conditions for frequent garage users.
6. Add Supplemental Heat Where You Work Most
Even with wall and door insulation in place, areas near the floor may remain chilly. Position a baseboard heater beneath your workbench or main work area to provide localized warmth. Hydronic baseboard heaters connected to your home’s boiler circulate hot water through pipes, radiating comfortable heat at floor level and beyond. This targeted approach keeps your feet and lower body warm without heating the entire space.

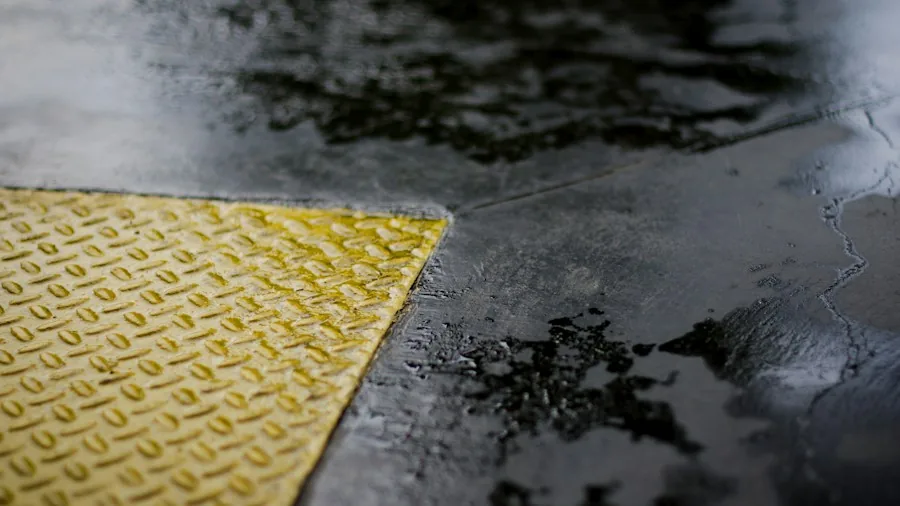

3. Insulate the Floor Surface with Mats or Rugs
Since concrete itself cannot be easily insulated after it is poured, covering it is the practical solution. Lay down an indoor-outdoor rug that can be vacuumed clean, or install interlocking rubber mats similar to gym flooring. These coverings provide both insulation and cushioning, making it more comfortable to stand, kneel, or work on the floor for extended periods. Layered insulation strategies throughout your garage compound the benefits of each individual improvement.
Combining Solutions for Maximum Efficiency
No single insulation method solves all garage comfort challenges. The most effective approach layers multiple strategies: insulated walls, an insulated and sealed door, weatherstripped windows, floor coverings, and supplemental heating where needed. This comprehensive strategy ensures that your heating investment stays in the space where it belongs, keeping your workshop productive, safe, and pleasant throughout the winter months.
